VX2300 ERA Series Video Outdoor Station, grey

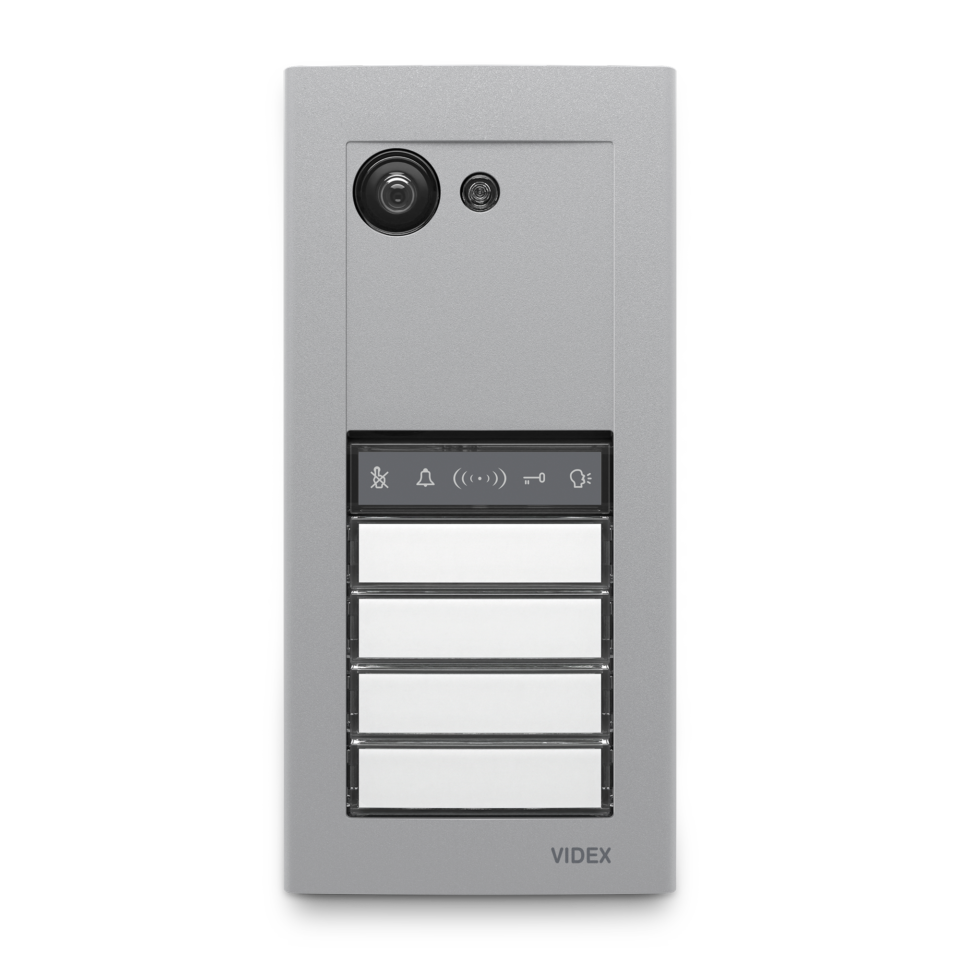

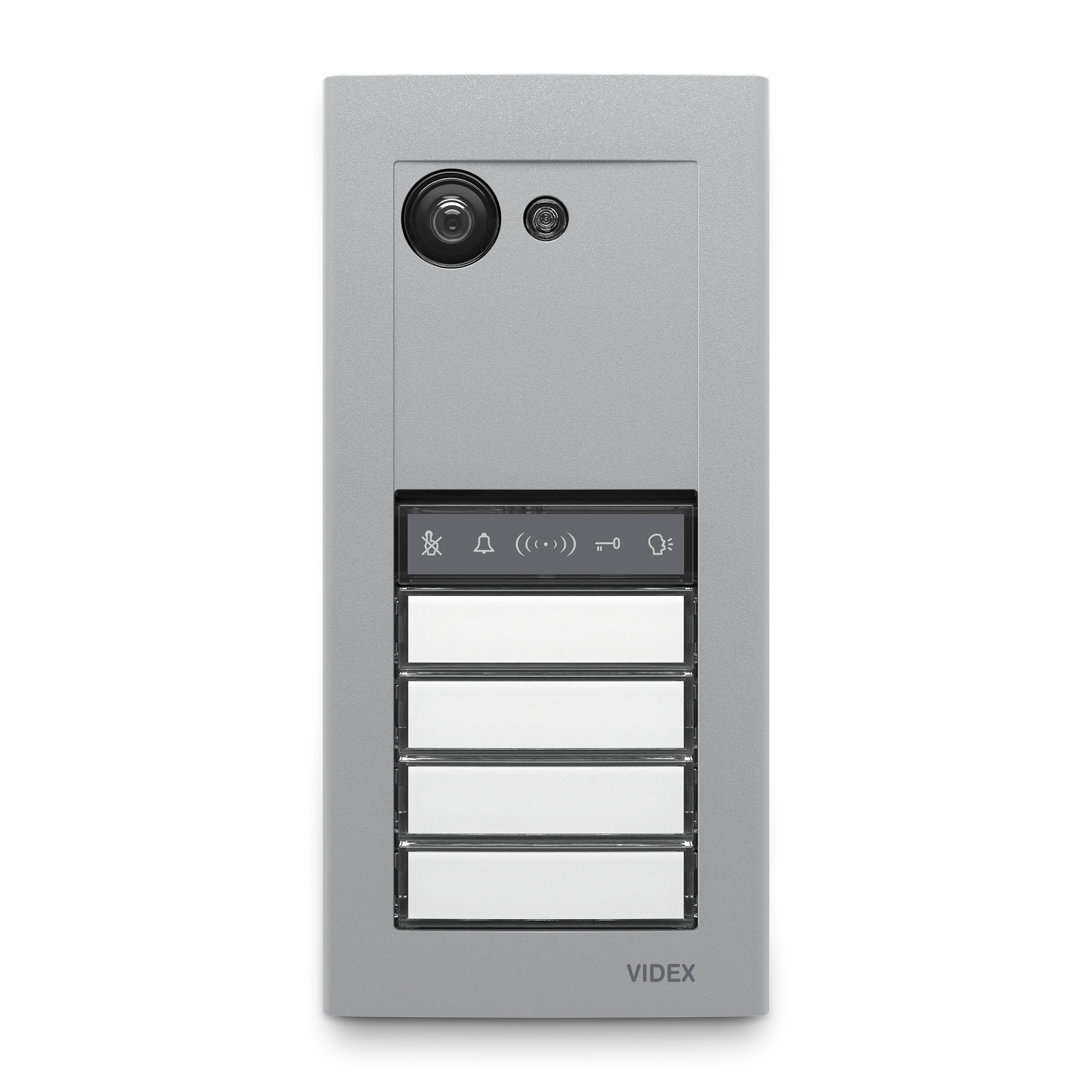

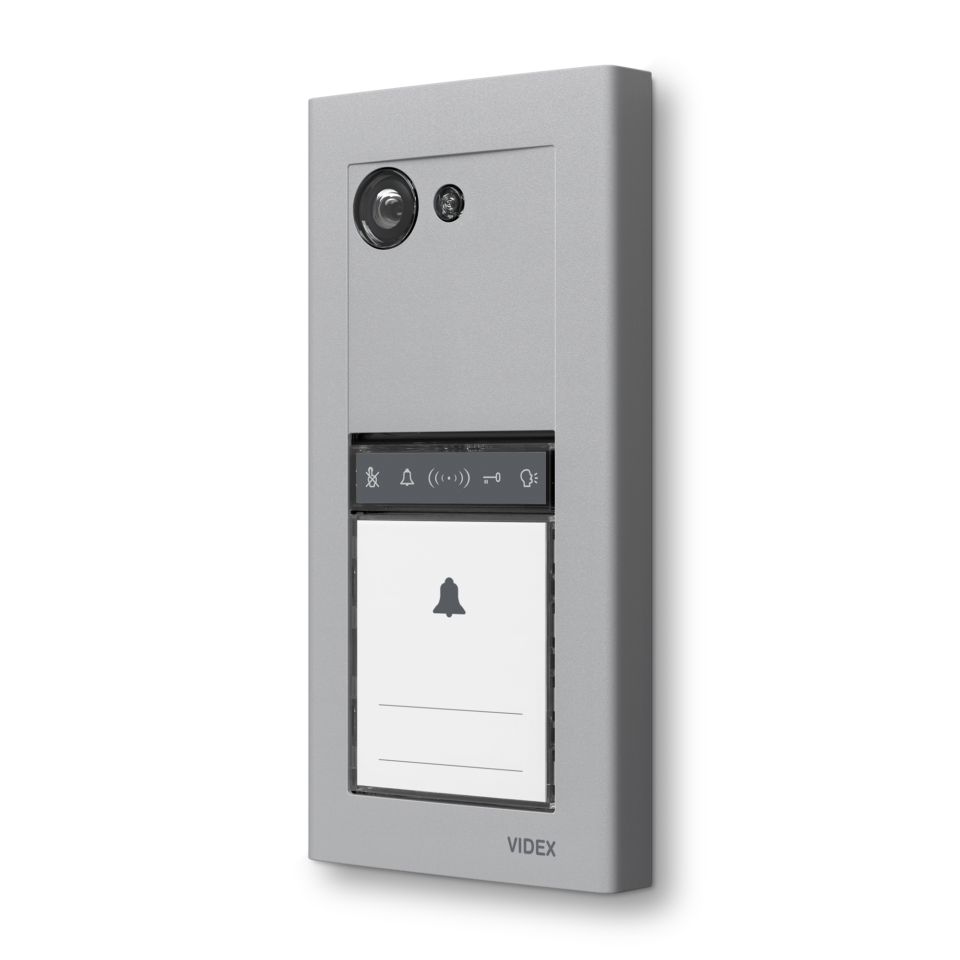

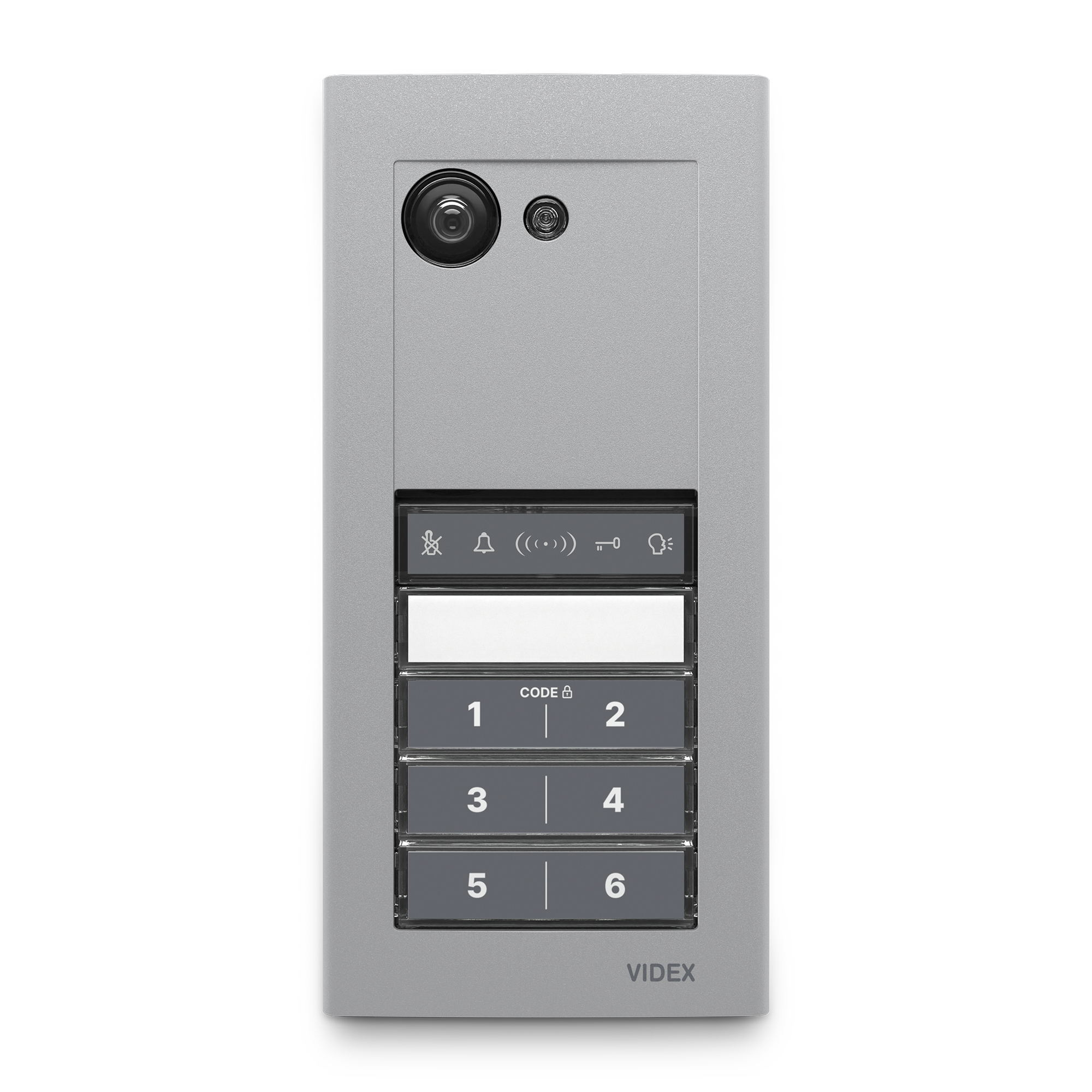

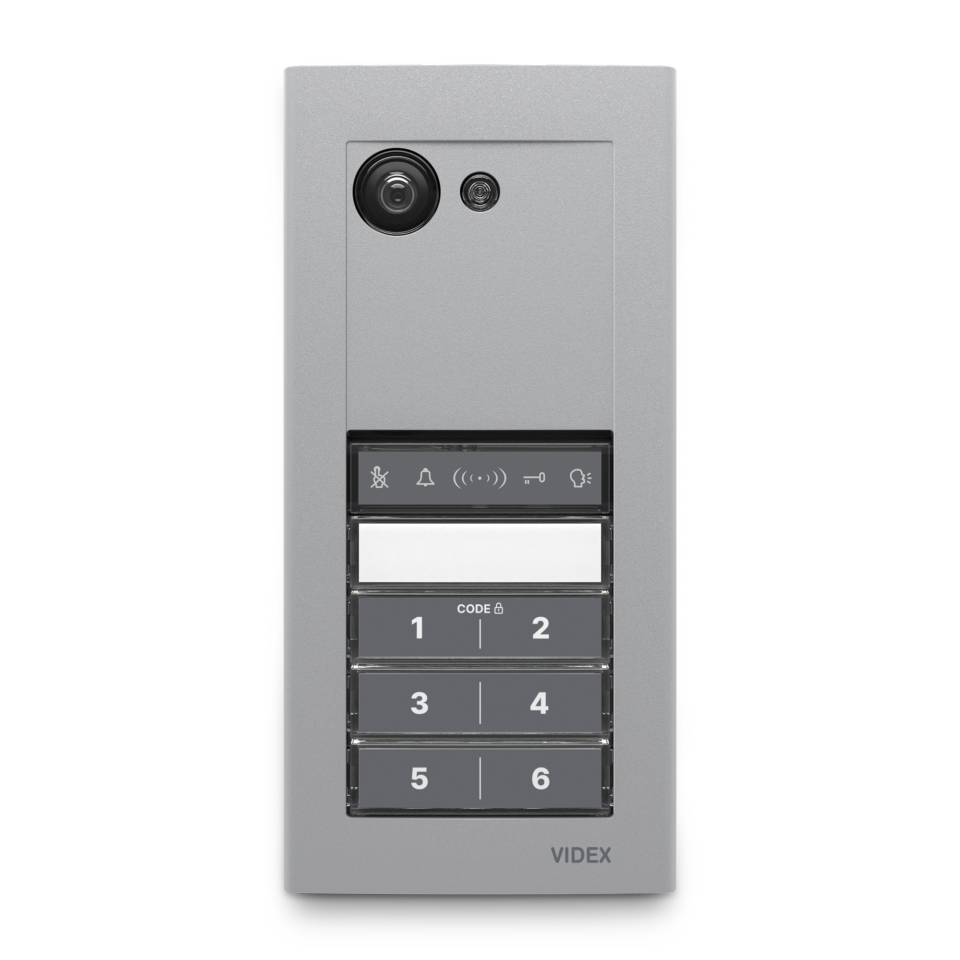

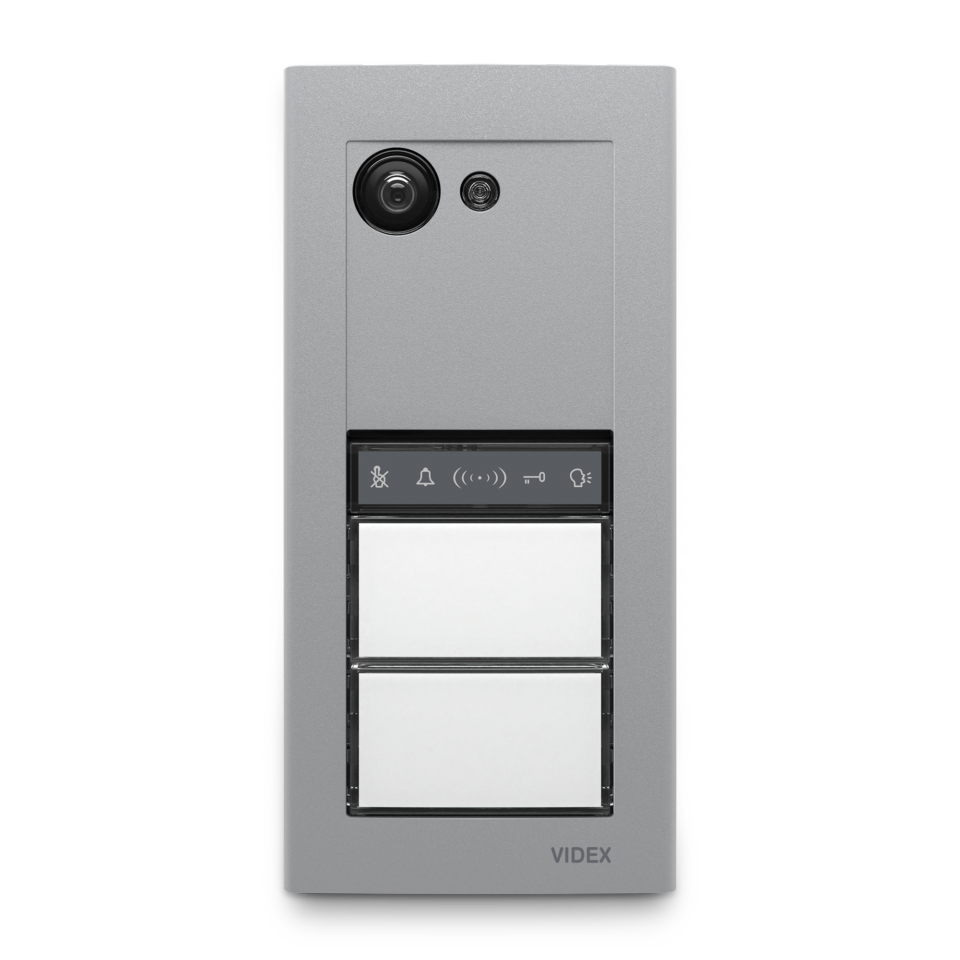

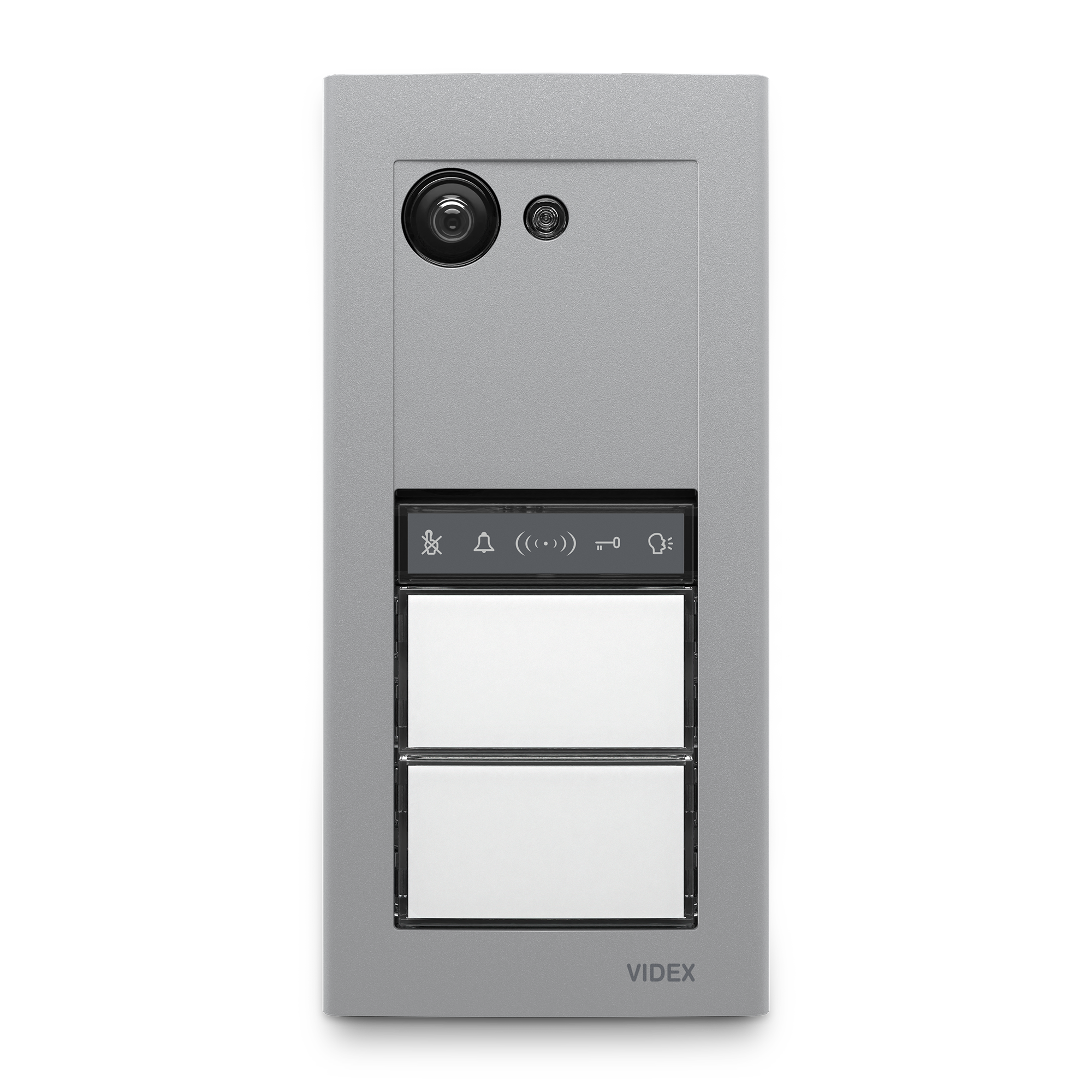

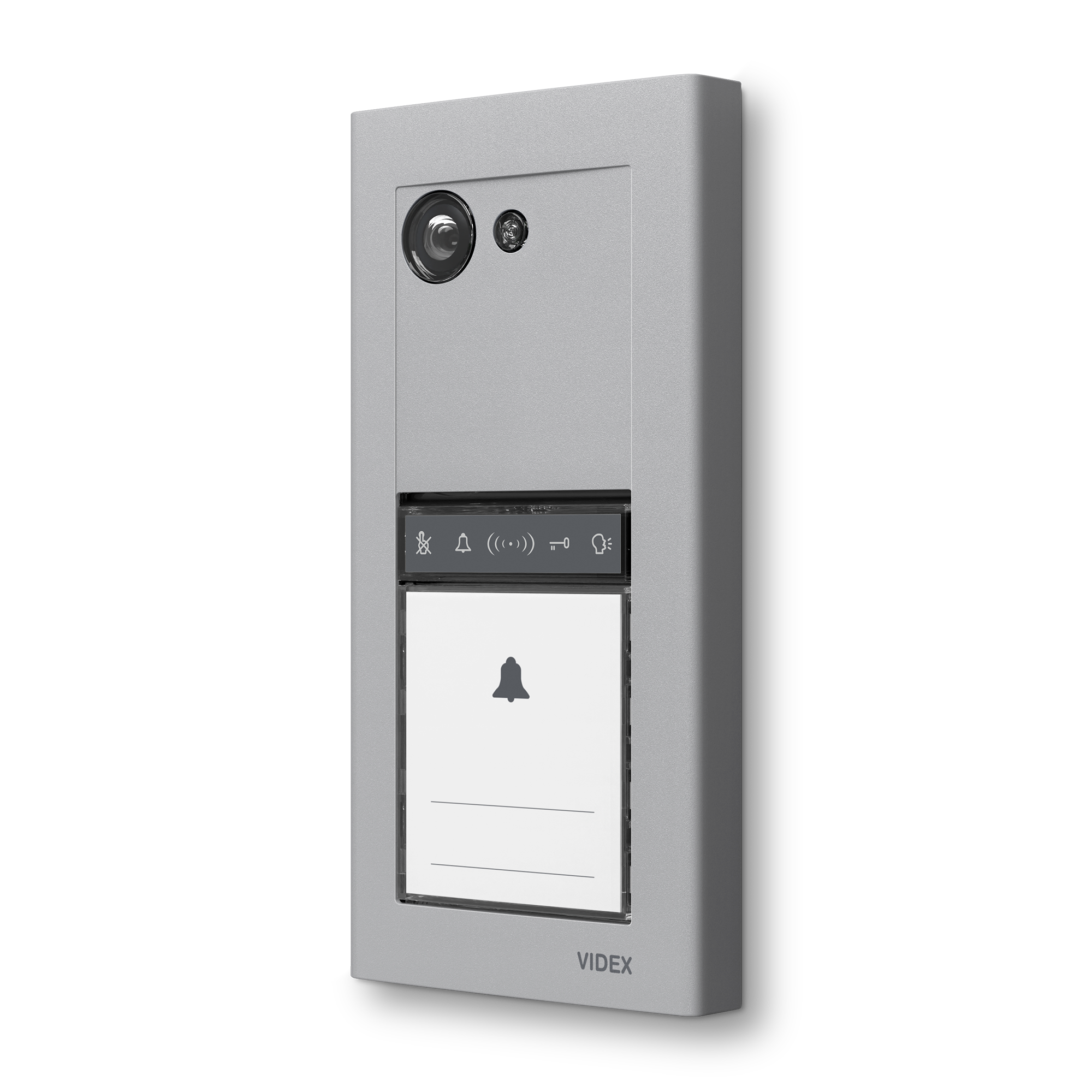

Era series Audio/video outdoor station for VX2300 systems, integrated 1/4”CMOS colour video camera (55° vertical, 115° horizontal) with 1 Lux min sensitivity and 976x582 (PAL) resolution. 1 white light LED for night vision. Built-in microphone and 8Ω/2W speaker with full-duplex audio function. Integrated NFC proximity reader for using up to 2,000 keys that can be programmed directly from the device using the master card supplied. Choose from four button layouts: 1, 2 or 4 call buttons or 6 buttons codelock plus one call button. RS-485, NFC and Bluetooth interfaces. 5 LEDs for visual alert of system status: Busy, Calling, NFC Reader, Speak and Door Open. Acoustic alerts and voice assistance for the visually impaired. Configurable Number of calling buttons, Device version, Code length, Door ID, Conversation and Door opening time. 2 relay outputs: 1 dry contact C-NO-NC (max 12-24Vac/dc 2A) and 1 dry contact C-NO (max 50Vac/dc 0,1A). Capacitive discharge option (max 12Vac/dc 1A) for directly powering locks (relay 1 only). 1 input for direct door opening (PTE). Adjustable voice assistance, microphone and loudspeaker volume levels, audio balance adjustment. Grey finish. Aluminium frame with IK09 and IP65 protection rating. Operating temperature -20°/+60 °C. Power supply by BUS. Simple configuration of the device through dip-switches or Bus Wizard software. Dimensions: 96x200x29 mm.
