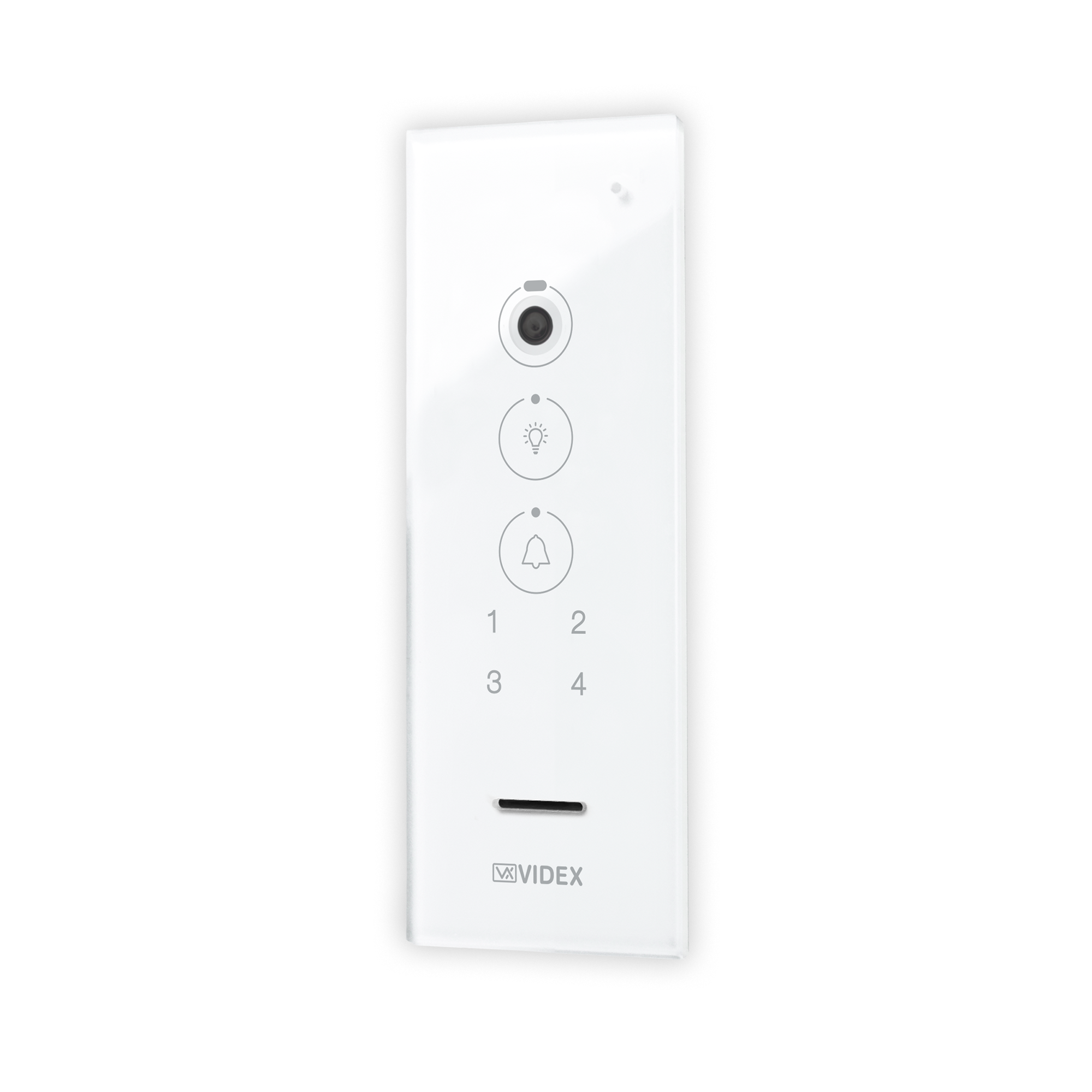

Digital audio/video door entry panel in the Kristallo design for indoor use only and to work with the VIDEX VX2200 digital system. Normally used on installations where each apartment requires an internal intercom directly outside their apartment.
The panel includes an hd colour camera (650 lines with 90° of viewing angle) plus the illumination LEDs, the speaker unit module, one call button, one service button and 4 numeric buttons for coded access using an eight digits code.
10 Way dip-switch bank of which 8 (1 to 8) are used to set the address of the videophone to call, the nineth to set the door opening time (2 seconds = OFF, 6 seconds = ON) and the tenth to restore the engineer’s code to factory default.
8 digit numeric access code programmable through the 4 numeric buttons.
Loudspeaker and microphone volume adjustable through two trimmers on the bottom of the unit.
Block exchangers are not required.Digital audio/video door entry panel in the Kristallo design for indoor use only and to work with the VIDEX VX2200 digital system. Normally used on installations where each apartment requires an internal intercom directly outside their apartment.
