Home > Products > 3196

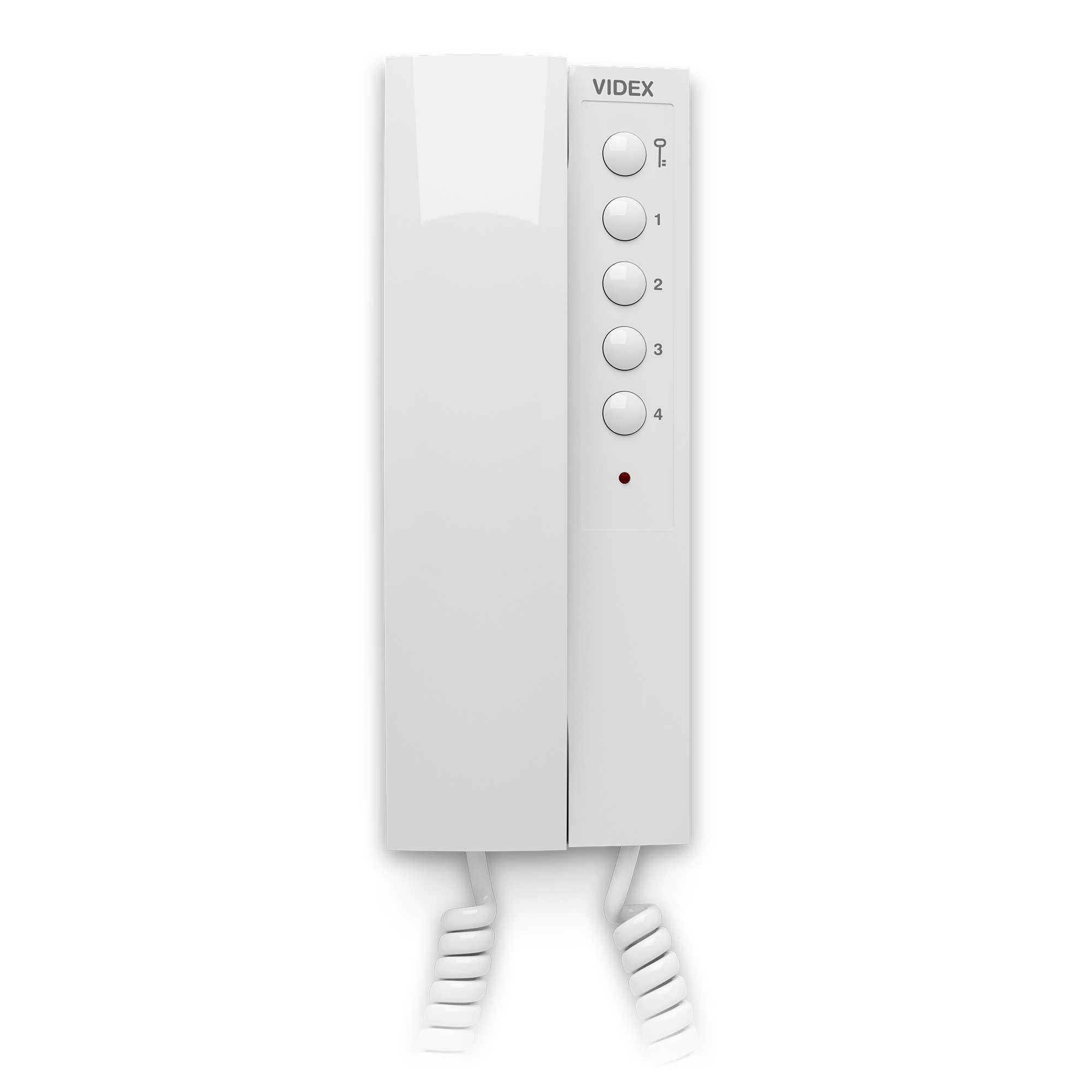

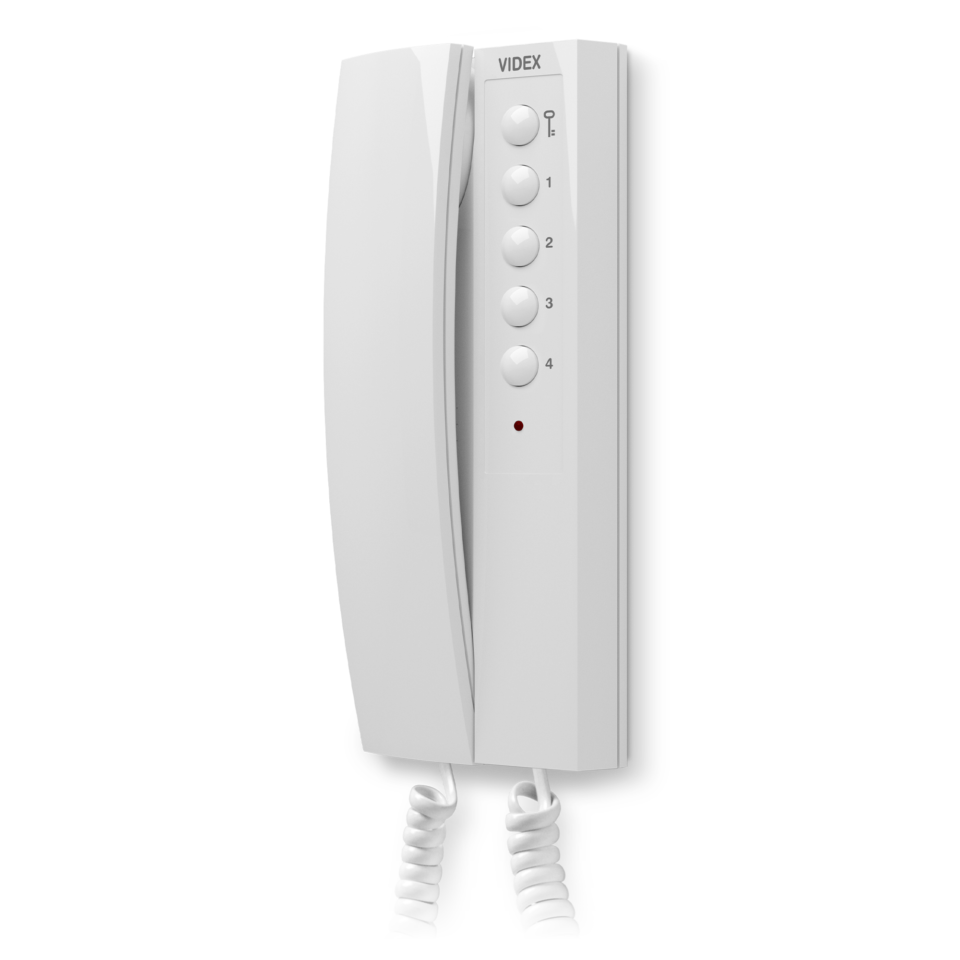

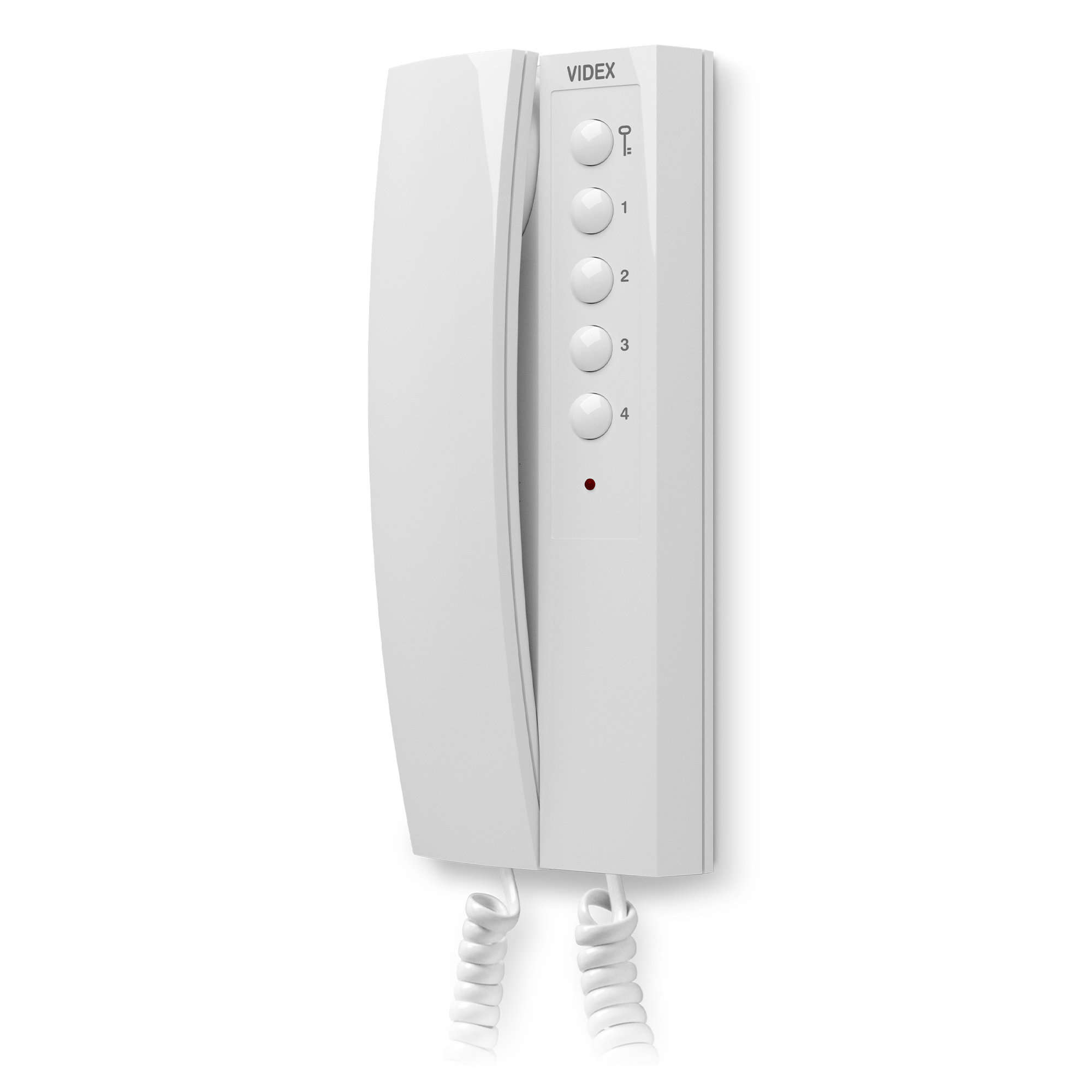

Art. 3196

Intercom with handset

Indoor Stations
3000 Series intercom, 5 buttons configurable for features: open door, intercom call, auto power on, timed privacy service, service, SIP call, DTMF transmission and send messages. 1 LED for services: privacy, status. 2 inputs. Call volume adjustment (3 levels), number of rings and ringtone. White ABS material. RJ-45 port 10/100 Mbps. IEEE 802.3af (Class 0) PoE Power, or 12V DC - 250mA. Dimensions: 85x218x55mm. Wall-mounted, optional table base cod. 3038/IP.3000 Series intercom, 5 buttons configurable for features: open door, intercom call, auto power on, timed privacy service, service, SIP call, DTMF transmission and send messages. 1 LED for services: privacy, status. 2 inputs. Call volume adjustment (3 levels), number of rings and ringtone. White ABS material. RJ-45 port 10/100 Mbps. IEEE 802.3af (Class 0) PoE Power, or 12V DC - 250mA. Dimensions: 85x218x55mm. Wall-mounted, optional table base cod. 3038/IP.
Technologies
Technical specifications

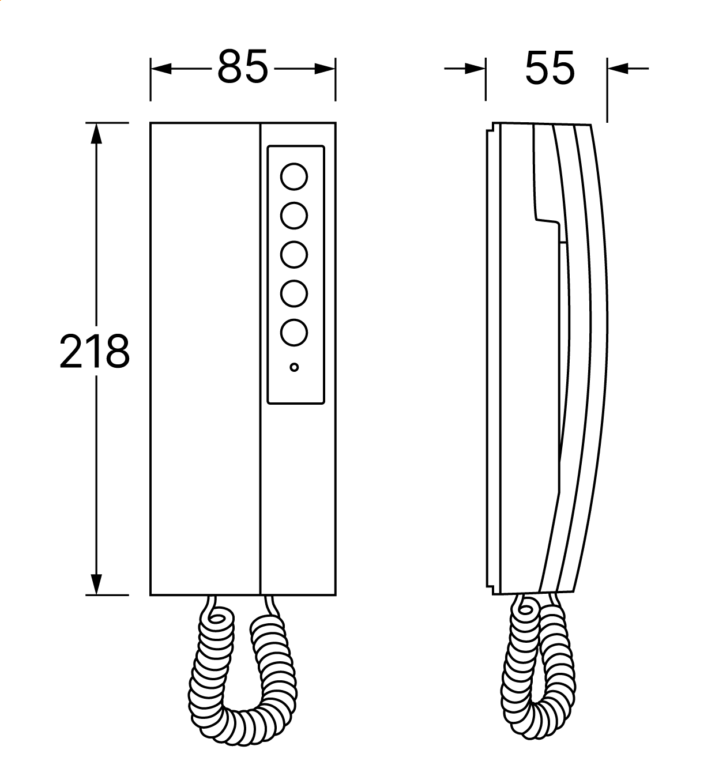

Technical design
Download
Datasheet
PDF | 1.9 Mb
Installation instructions
PDF | 5.4 Mb
Product features
Hearing impaired aidPoE power supply
